Acrylic Print
This flat printing method makes it possible to print directly onto or under a hight quality acrylic glass Plexiglas plate. The inks are solidified and fixed to the support by means of UV rays.
Choose your media
Rigid medias
Transparent Acrylic « Diasec » like 3 mm
Printing under the acrylic glass plate and addition of white coating under the ink coating so as to provide a white ground.
For use with ambient lighting only.
Grammage : 3600g | Width : 200 cm | Dmax: 2.4
Download ICC profile
Transparent Acrylic double ink layer 3 mm
Printing under the acrylic glass plate without white coating.
The whites are transparent and the ink coating is double.
For use with backlighting only.
Grammage : 3600g | Width : 200 cm | Dmax: 3.2
Download ICC profile
Diffusing Acrylic double ink layer 3 mm
Grammage : 3600g | Width : 200 cm | Dmax: 4
Download ICC profile
Transparent Acrylic « Day & Night » 3 mm
Printing under the acrylic glass plate and addition of white coating under the ink coating so as to provide a white ground.
For use with ambient lighting AND backlighting.
Grammage : 3600g | Width : 200 cm | Dmax: 2.4 / 4.2
Download ICC profile
Diffusing Acrylic « Day & Night » 3 mm
Printing onto the white opaque acrylic glass plate.
For use with ambient lighting AND backlighting.
Grammage : 3600g | Width : 200 cm | Dmax: 1.7 / 6
Download ICC profile
Our Plexiglas printing service
We offer you 4 types of printing, to meet all your utilization needs :
- “Diasec”: Printing under clear acrylic glass Plexiglas and addition of a white layer behind the ink layer in order to produce a deep white.
- For traditional utilization, in ambient light.
- On the back, you can opt for laminating on Dibond, to which we can add hanging bars, an inset aluminum frame placed 5 cm inside, or a flush aluminum frame running the length of the Dibond sheet for a "frame painting" effect.
- Our recommendation for hanging on the back: when laminating Plexiglas acrylic glass to Dibond, hanging on the back with an inset or flush-mounted aluminum frame, or top/bottom hanging bars, stiffens the components together and prevents any deformation of the material over time. This is particularly true for large formats or panoramic formats (2:1 ratio). Alternatively, if you don't follow our recommendation, you can choose to go without any rigid attachment at the back.
2. Ink print layers
3. White supporting ink layer
- Double-ink transparency: Printing under clear acrylic glass Plexiglas of 2 layers of ink, with no additional white layer.
- Whites are therefore transparent.
- For use in backlighting only.
- 2 or 4 holes (with or without spacers) are available for hanging.
2. Ink print layer
3. Acrylic glass - Diffusing plexiglass
- Day & Night Classique: like “Diasec” with an extra layer of ink behind the white layer.
- For traditional utilization in ambient light AND backlighting.
- 2 or 4 holes (with or without spacers) are available for hanging.
2. Ink print layer
3. White ink layer<
4. Ink print layer
- Day & Night on Diffuser: Printing on white opaque acrylic glass Plexiglas
- For traditional utilization in ambient light AND backlighting.
- 2 or 4 holes (with or without spacers) are available for hanging.
2. Acrylic glass - Plexiglas - DIffusing
Flat printing directly on a high-quality acrylic Plexiglas plate
On the back of transparent "Diasec" acrylic glass Plexiglas: unfinished or laminated to 3mm Dibond or 2mm Dibond.

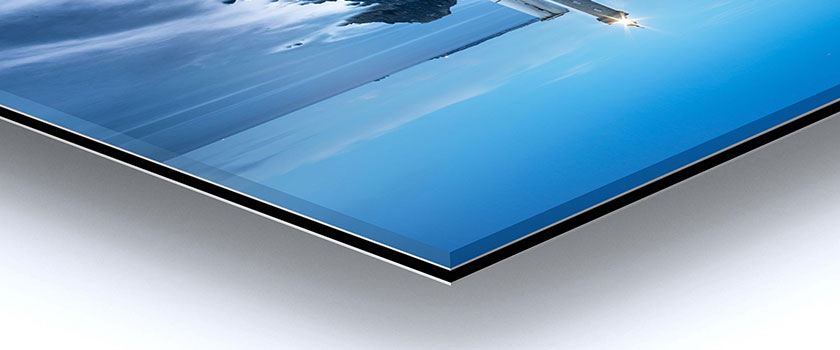

3 mm "Diasec" acrylic Plexiglas laminated to thick 3 mm Dibond for added rigidity

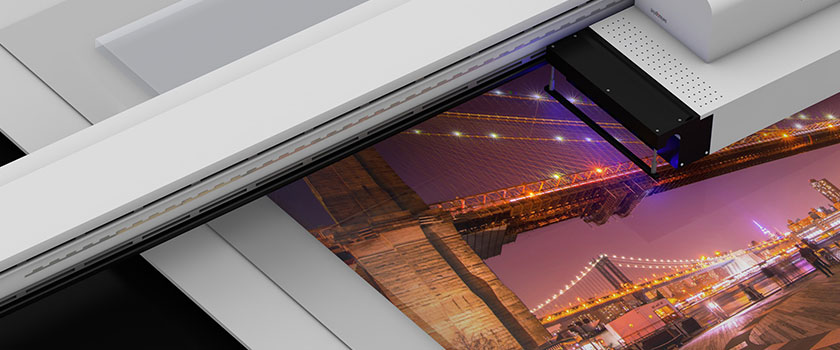

The Rigid Printing process
Rigid printing is a highly innovative, high-quality printing process that deposits inks directly onto a rigid support.
This very high-tech procedure makes it possible to print directly onto a wide variety of rigid supports, such as Dibond,Plexiglas,Foamcore, or PVC.
The inks are solidified and fixed to the support with the aid of UV rays and offer extreme durability in indoor and outdoor exhibition conditions.
Large
Gamut
150 DPI
Resolution
Free size
205 cm
Max width
Permanency
Outdoor
Print : UV SWISSQ KUDU
